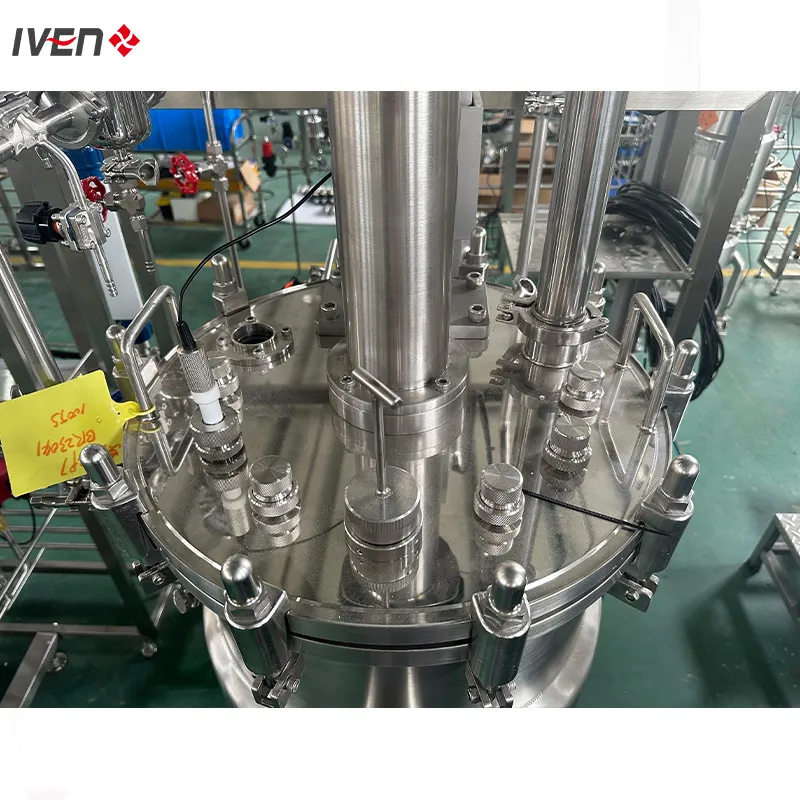

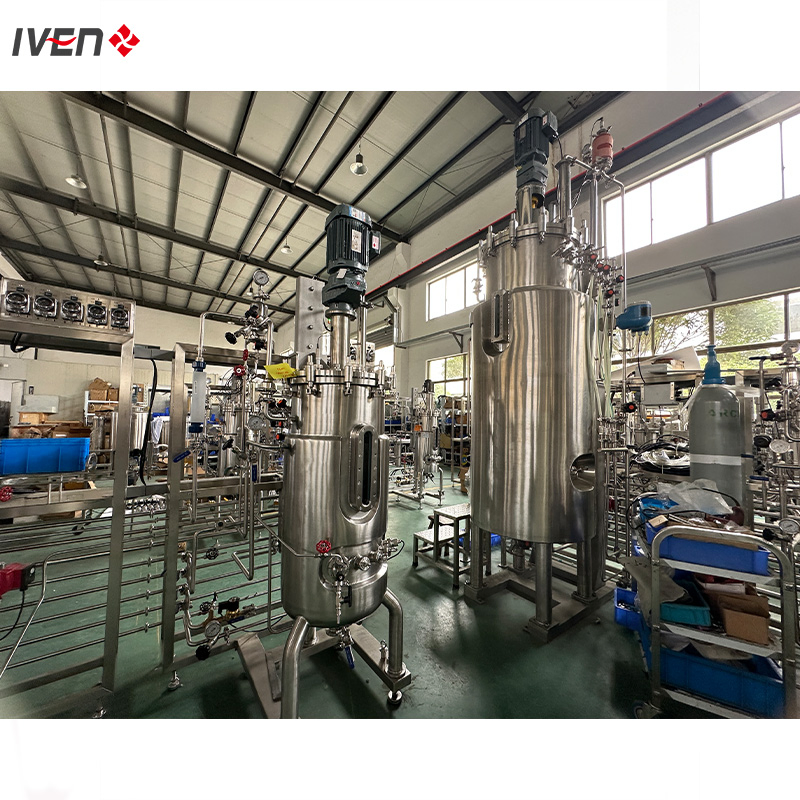

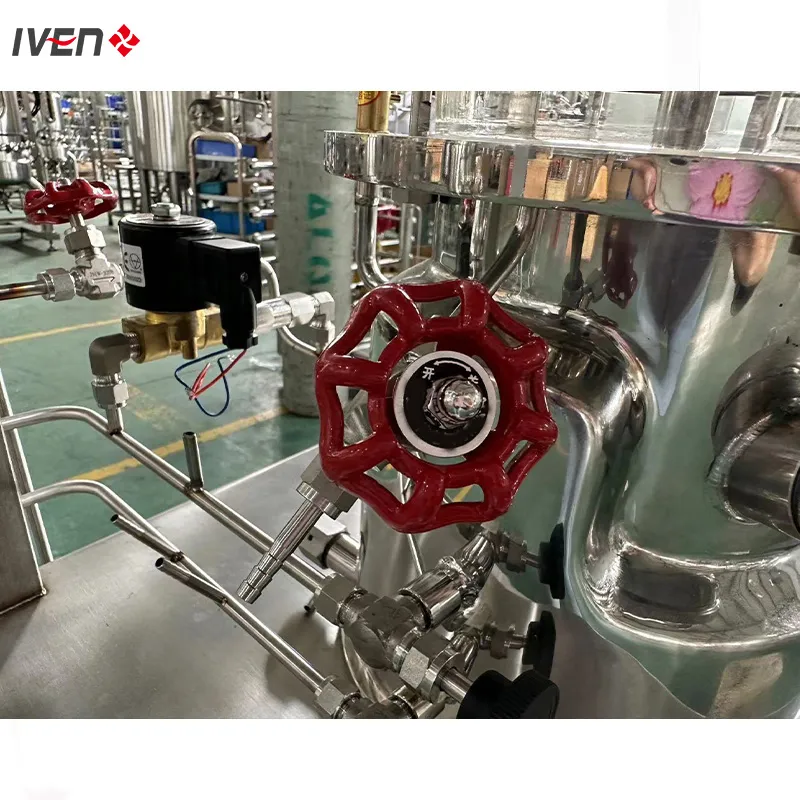

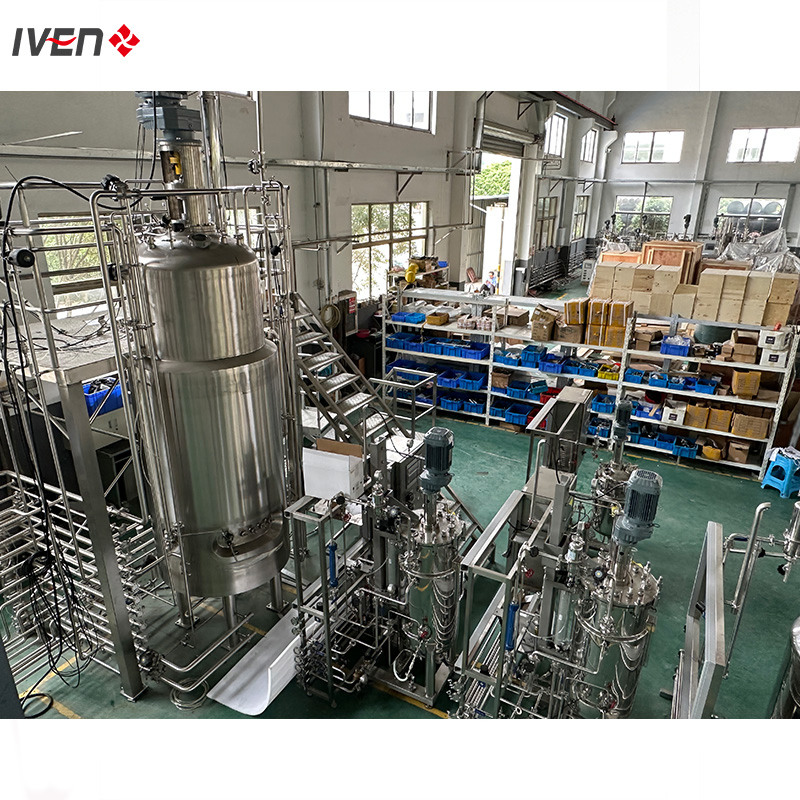

50L-50000L Vaccine Mixing Tank
A pharmaceutical vaccine mixing tank is a specialized vessel used for the preparation and mixing of vaccines. These tanks are designed to meet the stringent requirements of the pharmaceutical industry, including the need for a sterile environment, precise temperature control, and agitation.
The tank is typically made of high-quality stainless steel and features a smooth interior surface that prevents the growth of bacteria and other microorganisms. The tank may also include a variety of features such as baffles, agitators, and heating/cooling systems.
| Item | Unit | Parameter | |
|---|---|---|---|
| Inner | Bobbin Jacket | ||
| Working pressure | Mpa | 0.25 | 0.3 |
| Design pressure | Mpa | 0.3 | 0.4 |
| Working temperature | ºC | 15-130 | 15-130 |
| Design temperature | ºC | 150 | 150 |
| Materials (Main) | / | S31603 | S30408 |
| Agitator speed | r/min | 350 | |
| Tank volume | / | 100L (Working 75L) - Customizable up to 50000L | |
