CE Approved Healthcare Product Preparation Medicinal Vessel Biologic Drug Formulation Medical Solution Reactor Mixing Tank
CE Approved Healthcare Product Preparation Medicinal Vessel Biologic Drug Formulation Medical Solution Reactor Mixing Tank
CE Approved Healthcare Product Preparation Medicinal Vessel Biologic Drug Formulation Medical Solution Reactor Mixing Tank
CE Approved Healthcare Product Preparation Medicinal Vessel Biologic Drug Formulation Medical Solution Reactor Mixing Tank
CE Approved Healthcare Product Preparation Medicinal Vessel Biologic Drug Formulation Medical Solution Reactor Mixing Tank
1 / 5
CE Approved Healthcare Product Preparation Medicinal Vessel Biologic Drug Formulation Medical Solution Reactor Mixing Tank
CE Approved Healthcare Product Preparation Medicinal Vessel Biologic Drug Formulation Medical Solution Reactor Mixing Tank
CE Approved Healthcare Product Preparation Medicinal Vessel Biologic Drug Formulation Medical Solution Reactor Mixing Tank
CE Approved Healthcare Product Preparation Medicinal Vessel Biologic Drug Formulation Medical Solution Reactor Mixing Tank
CE Approved Healthcare Product Preparation Medicinal Vessel Biologic Drug Formulation Medical Solution Reactor Mixing Tank

CE Approved Healthcare Product Preparation Medicinal Vessel Biologic Drug Formulation Medical Solution Reactor Mixing Tank

Application: Liquid with Suspended Solids, Powder, Viscous Fluid, Liquid, Granules, 1 Year
Application Area: Pharmaceutical
Certification: CE, ISO, CE
Send Inquiry

Product Description

ℹ️

Basic Info.

Model NO.
Customized-3
Condition
New
Heating Method
Electric/Steam Heating
Stirring Type
Gravity
Selling Points
Long Life, Automatic, Competitive Price
Capacity
50L - 50000L
Core Components
Motor, Pressure Vessel
Operating type
Continuous Operating
⚙️

Product Description

50L-50000L Vaccine Mixing Tank

A pharmaceutical vaccine mixing tank is a specialized vessel used for the preparation and mixing of vaccines. These tanks are designed to meet the stringent requirements of the pharmaceutical industry, including sterile environments, precise temperature control, and high-efficiency agitation.

Typically made of high-quality stainless steel (SUS316L/SUS304), these tanks feature a mirror-polished interior surface to prevent microbial growth. Systems include specialized baffles, agitators, and advanced heating/cooling jackets.

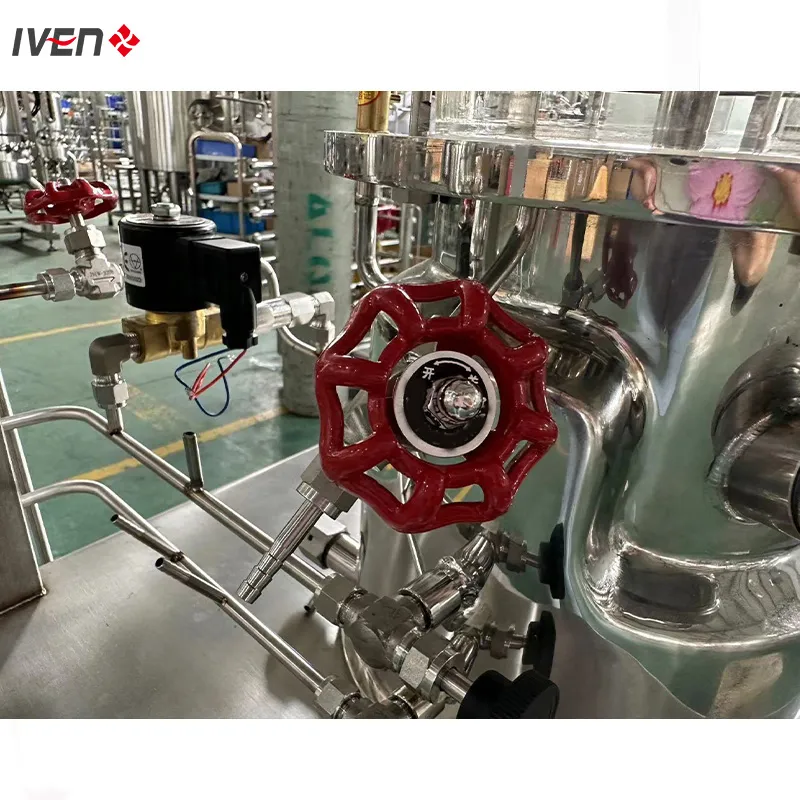

Vaccine Mixing Tank 1

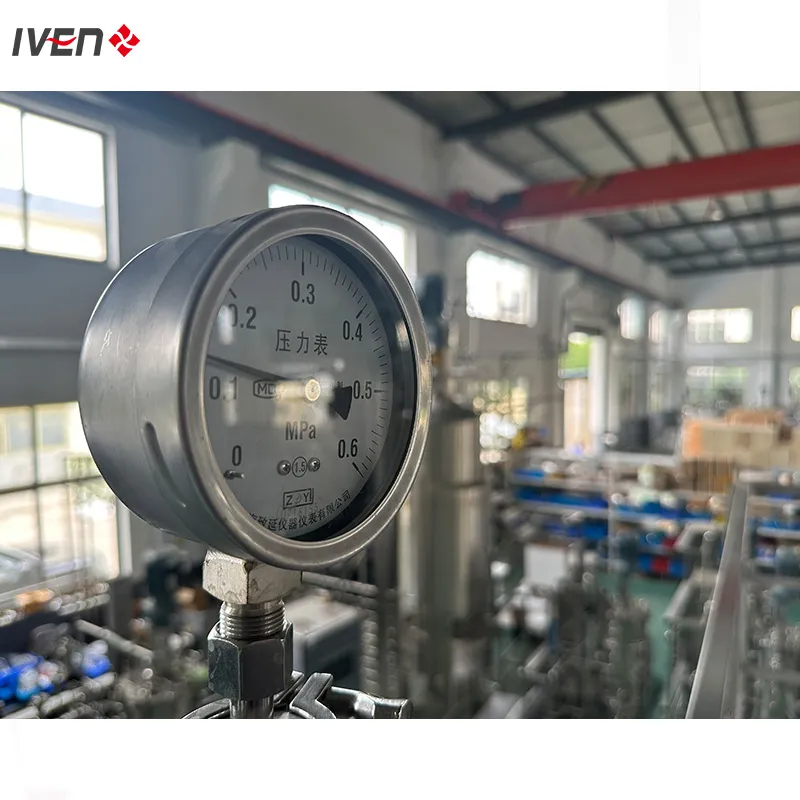

Vaccine Mixing Tank 2

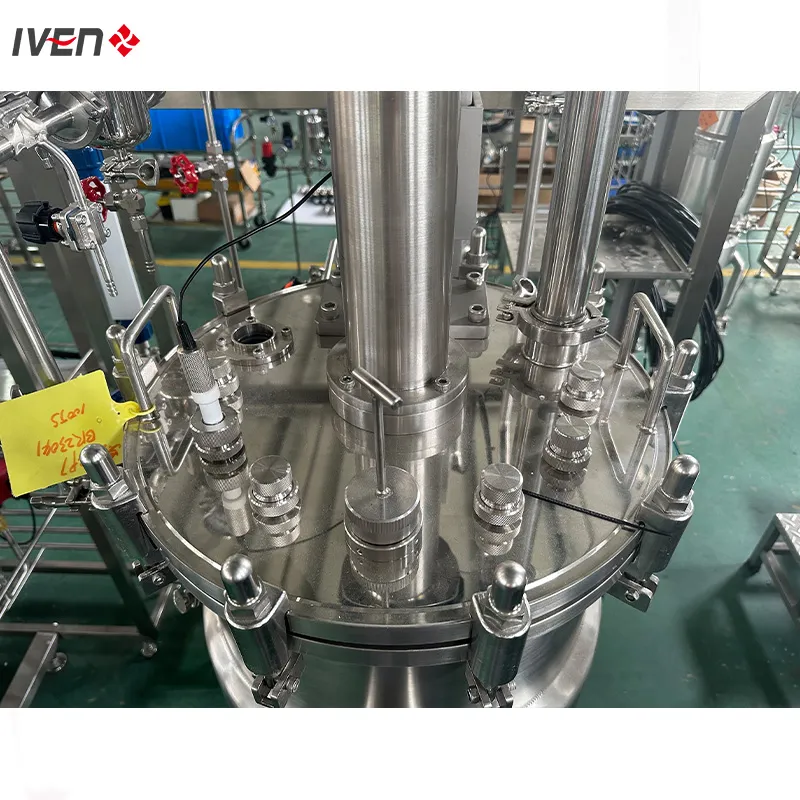

Vaccine Mixing Tank 3
📊

Product Parameters

Item Unit Inner Parameter Jacket Parameter
Working PressureMpa0.250.3
Design PressureMpa0.30.4
Working Temp.ºC15-13015-130
Materials/S31603S30408
Surface RoughnessμmInternal 0.4 μm / External 0.8 μm
Mixing Speedr/min0-350rpm (Frequency conversion)
Sterilization/Online Steam Sterilization (SIP)

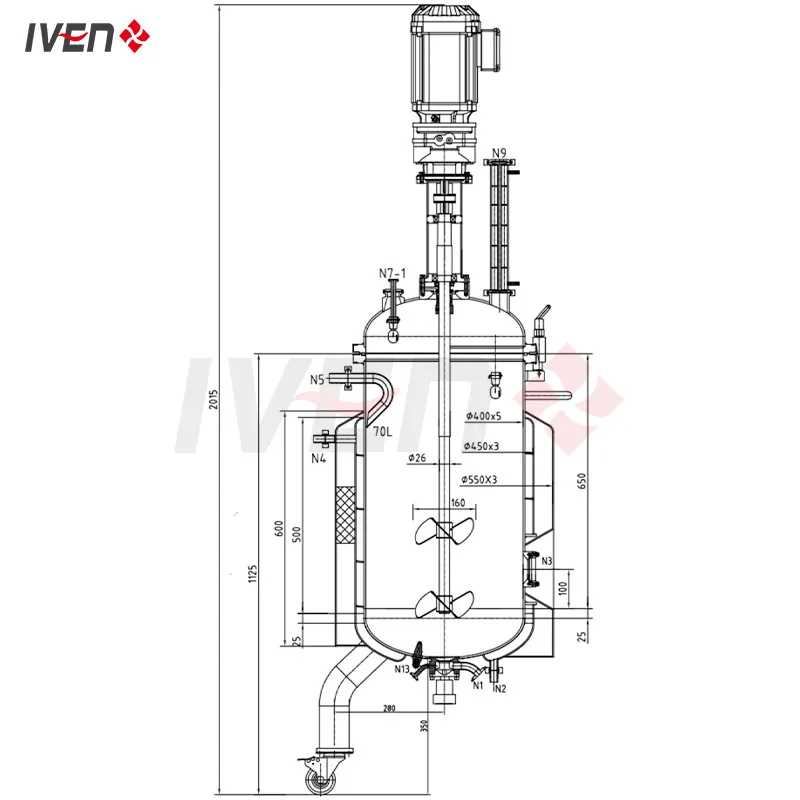

Technical Drawing
💎

Our Advantages

  • Efficient Mixing: Designed to unify ingredients precisely for consistent vaccine quality.
  • Hygienic Design: High-quality stainless steel construction with zero dead angles, meeting strict GMP standards.
  • Increased Production: Customizable sizes from 50L to 50,000L to scale with your manufacturing needs.
  • Advanced Control: Features PID automatic temperature control and real-time weighing systems.
  • Regulatory Compliance: Built to meet global pharmaceutical safety and quality regulations.

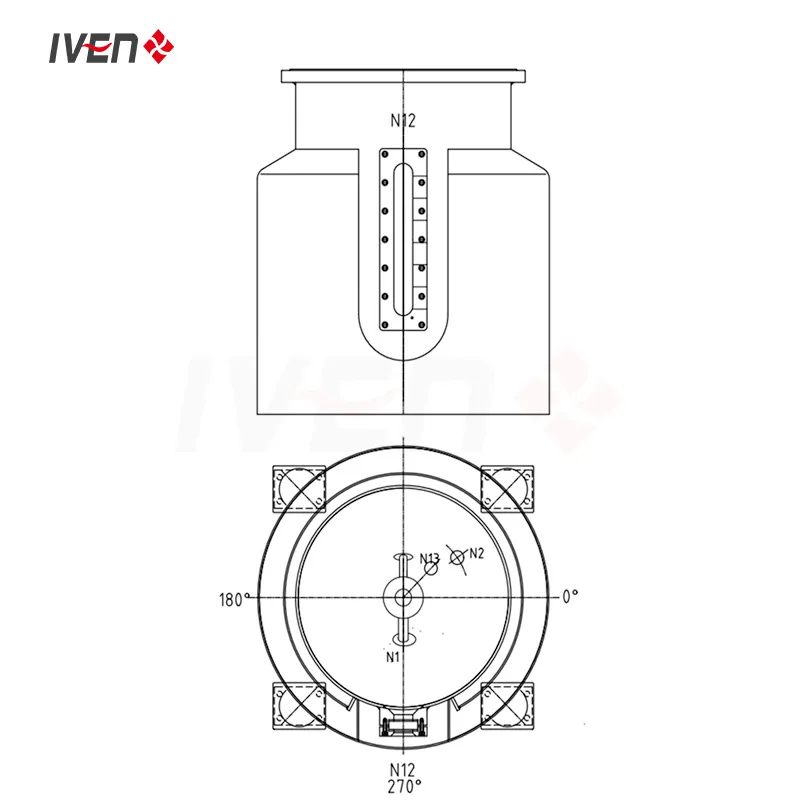

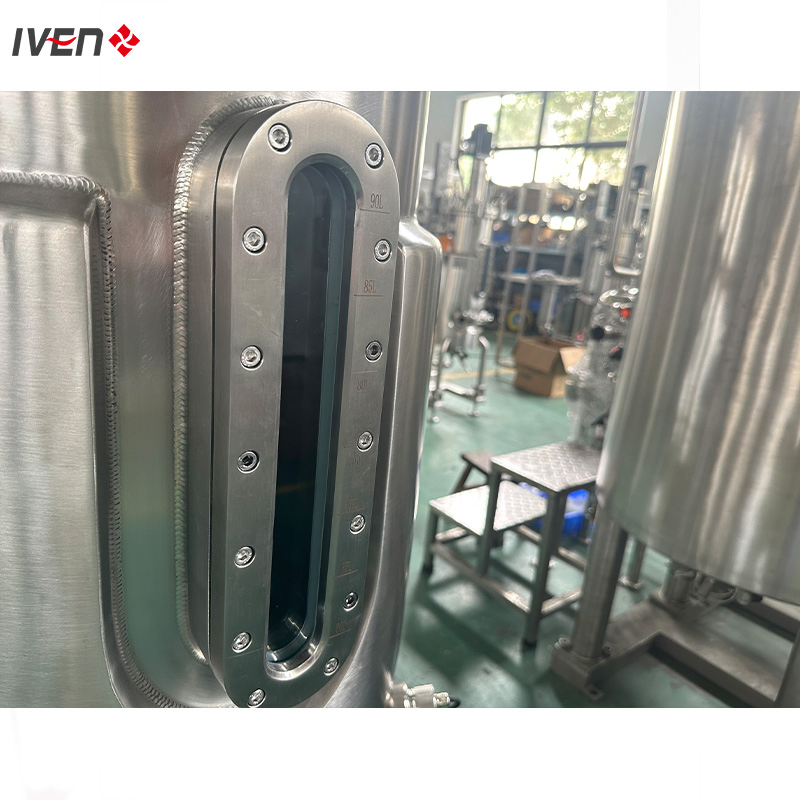

Detail 1

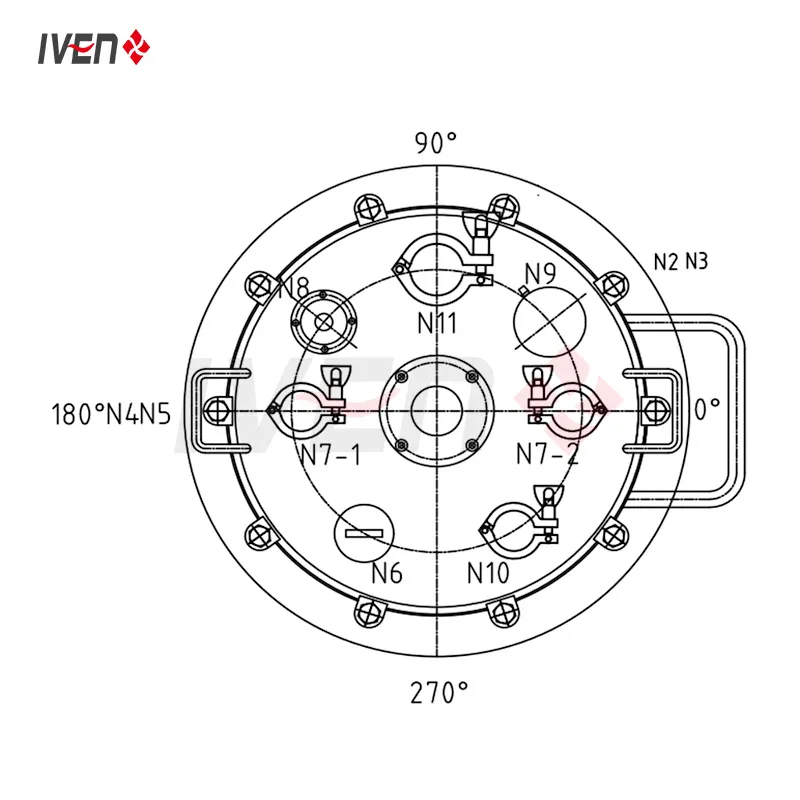

Detail 2
🏭

Process Showcase

Production Line

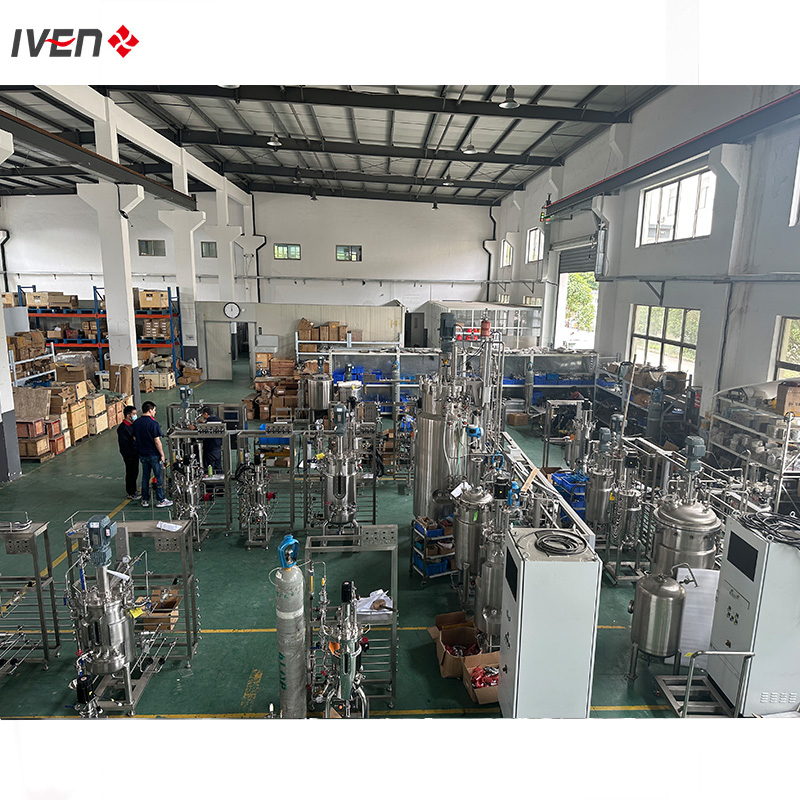

Workshop

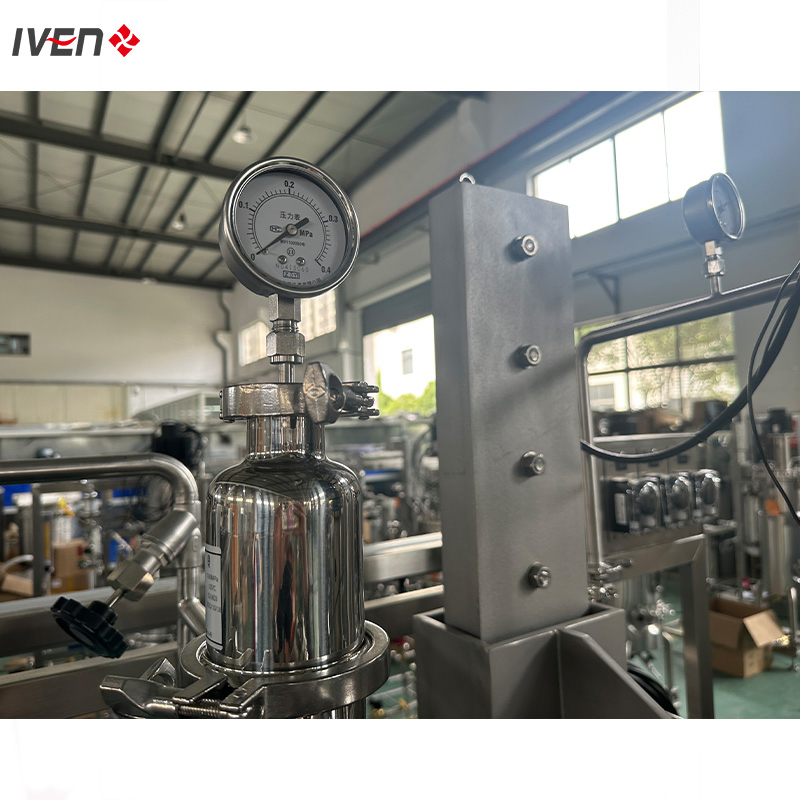

Equipment
❓

Frequently Asked Questions

Q1: What materials are used for the vaccine mixing tanks?
The inner tank is constructed from high-grade SUS316L stainless steel for maximum corrosion resistance, while the jacket is made of SUS304.
Q2: Can the mixing speed be adjusted?
Yes, the system utilizes frequency conversion control for stepless speed regulation, typically ranging from 0-350rpm.
Q3: How is the system sterilized?
The tanks support online steam sterilization (SIP) and are designed with diaphragm bottom valves to ensure no dead angles during the process.
Q4: What is the capacity range available?
We offer a wide range of capacities from small 50L pilot tanks up to 50,000L large-scale production vessels.
Q5: Does the tank include a temperature control system?
Yes, it features PID automatic control with Pt100 electrodes, allowing for precise heating and cooling through the jacket.
Q6: Are the tanks suitable for sterile pharmaceutical environments?
Absolutely. All surfaces are mirror-polished (Ra ≤ 0.4μm) and the design complies with stringent medical and biologic drug formulation standards.
