📊 Overview
Model NO.
Customized IVEN -3
Heating Method
Electric/Steam
Operating Type
Continuous Operating
⚙️ Product Description

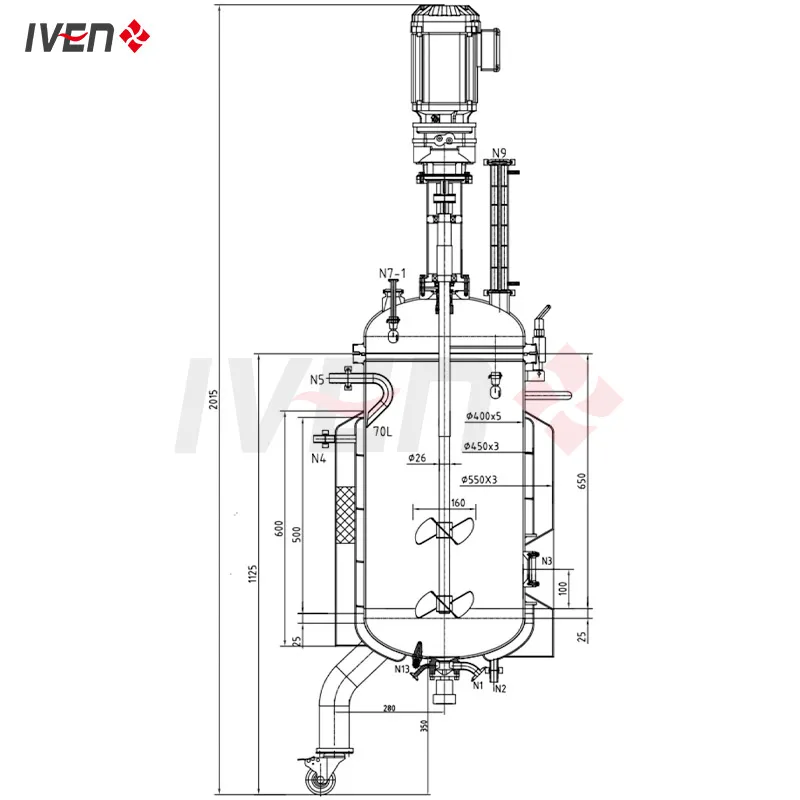

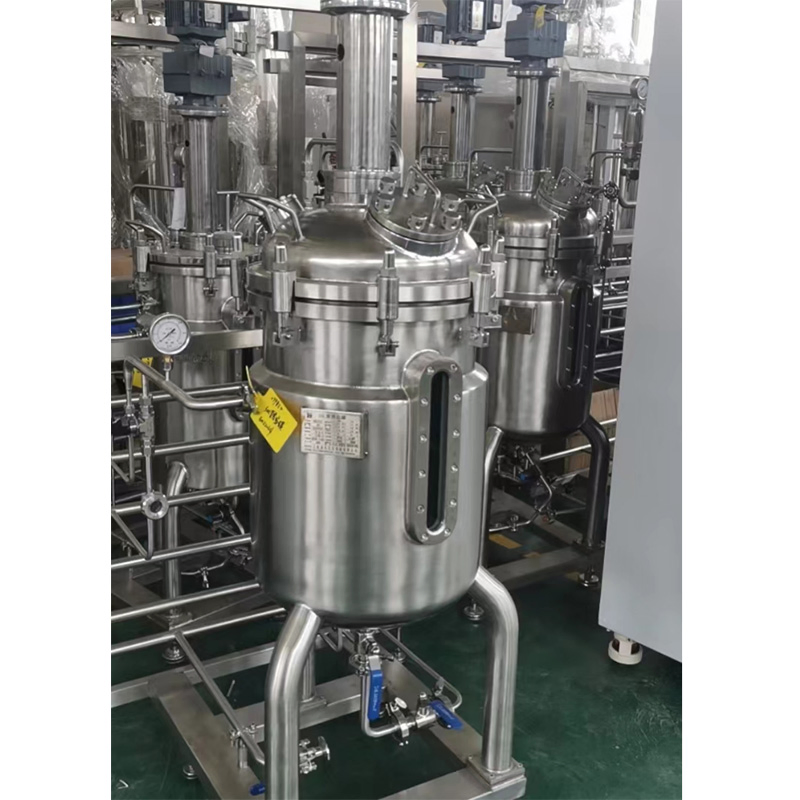

50L-50000L Vaccine Mixing Tank
A pharmaceutical vaccine mixing tank is a specialized vessel used for the preparation and mixing of vaccines. These tanks are designed to meet the stringent requirements of the pharmaceutical industry, including the need for a sterile environment, precise temperature control, and agitation.
The tank is typically made of high-quality stainless steel and features a smooth interior surface that prevents the growth of bacteria and other microorganisms.
📋 Product Parameters
| Item |
Unit |
Parameter (Inner / Bobbin Jacket) |
| Working pressure |
Mpa |
0.25 |
0.3 |
| Working temperature |
ºC |
15-130 |
15-130 |
| Materials |
/ |
S31603 |
S30408 |
| Surface roughness |
μm |
Internal 0.4 μm / Outer 0.8 μm |
| Mixing system |
/ |
Upper mechanical mixing, 316L low shear paddle, 0-350rpm |
| Control system |
/ |
BIOTECH-7000 biological process controller |
🏆 Our Advantages
Efficient MixingEnsures final product is uniform and consistent throughout the manufacturing process.
Hygienic DesignMade of high-quality stainless steel, minimizing contamination risks and ensuring safety.
Customizable CapacityAvailable in various sizes from 50L to 50000L to meet specific production needs.
Regulatory ComplianceDesigned to meet strict pharmaceutical regulatory requirements and safety standards.

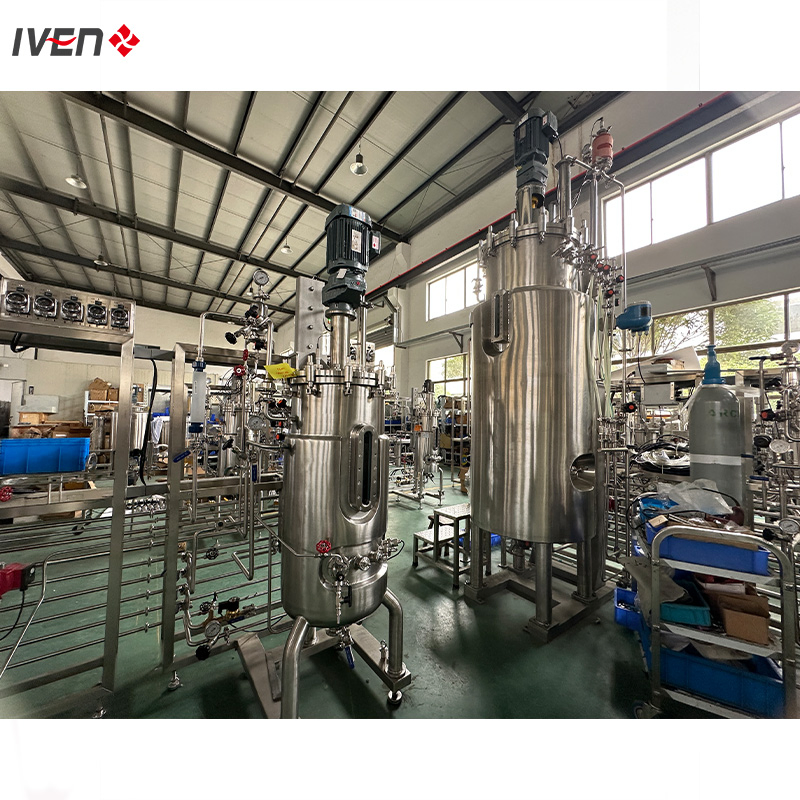

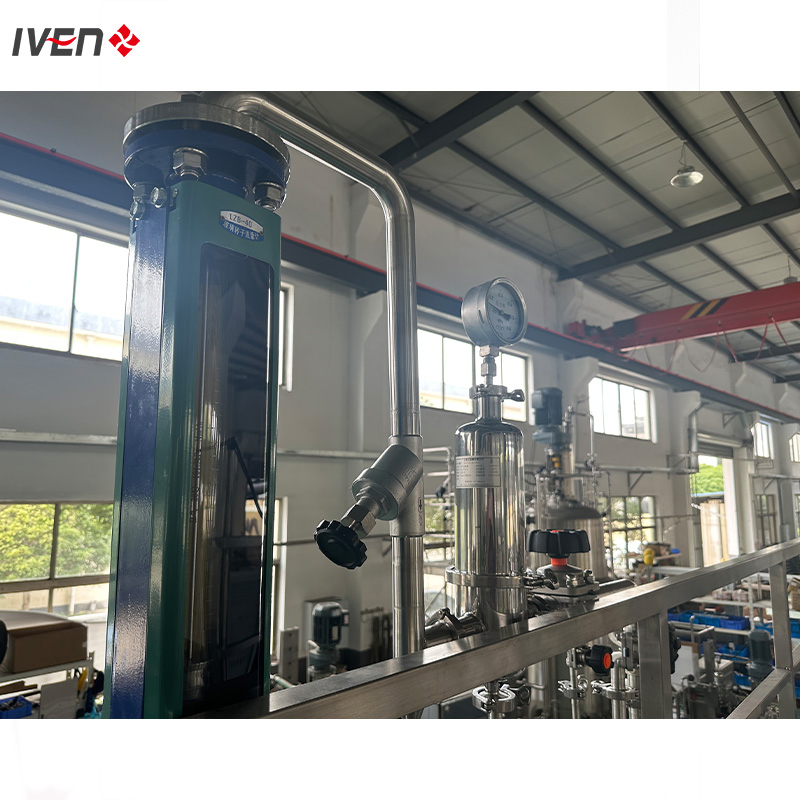

🏭 Technical Showcase
❓ Frequently Asked Questions
What materials are used in the vaccine mixing tank?
The inner body is made of SUS316L stainless steel for maximum corrosion resistance, while the jacket is made of SUS304.
What is the capacity range of these tanks?
We offer customized solutions ranging from 50 Liters up to 50,000 Liters to suit different manufacturing scales.
How is the sterilization handled?

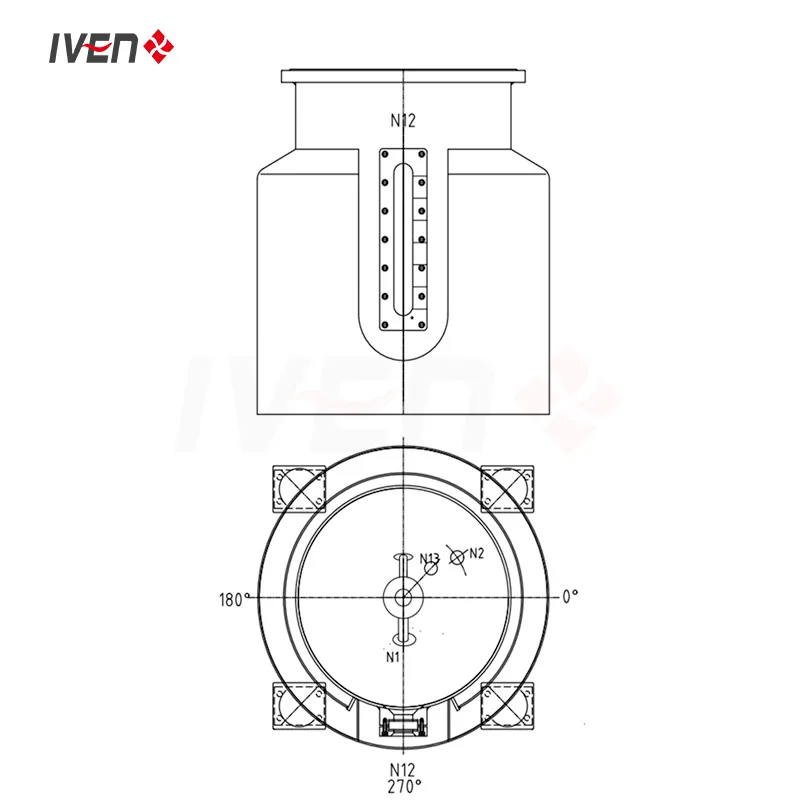

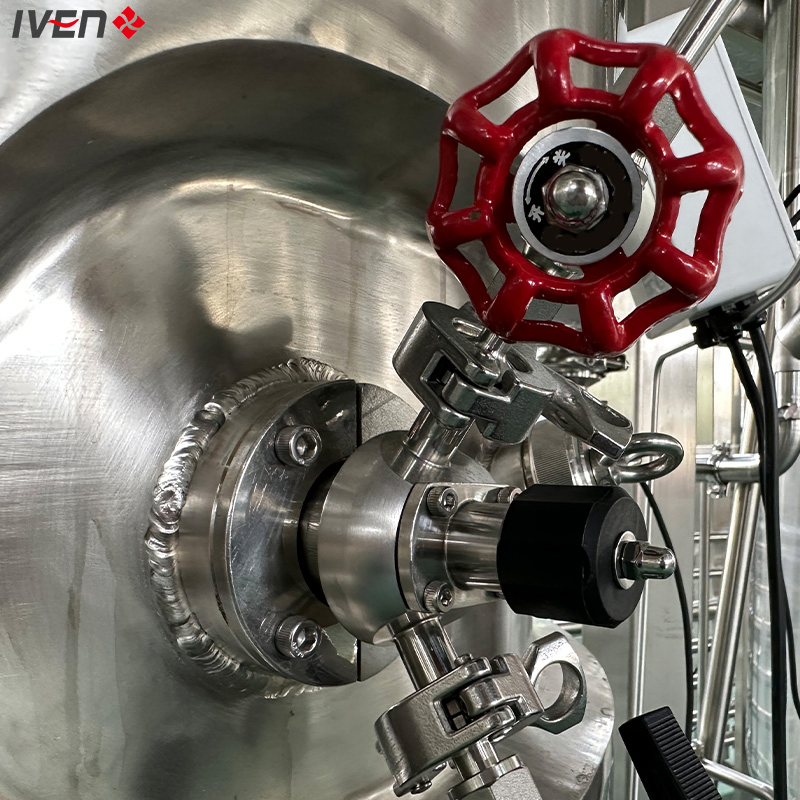

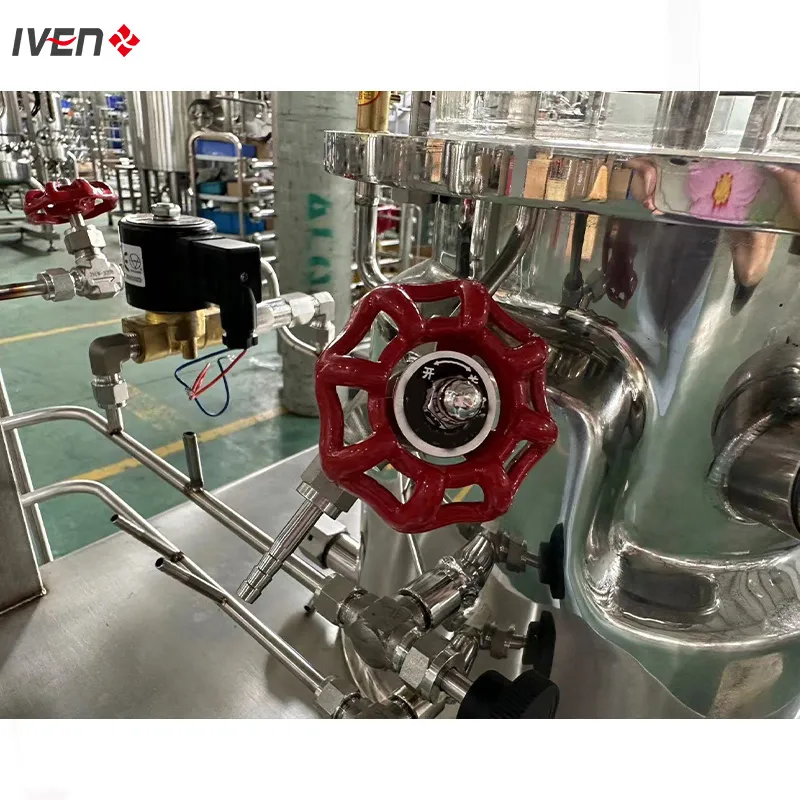

The system supports online steam sterilization. The bottom valve is specially designed with a diaphragm to ensure no dead angles during the process.
Does the system include temperature control?
Yes, it features PID automatic control for both heating and cooling exchange via the jacket, with a display range up to 150ºC.
Is the mixing speed adjustable?
Yes, the system utilizes frequency conversion control for stepless speed regulation, typically ranging from 0-350 rpm.
Are the tanks compliant with international standards?
Yes, the equipment is designed to meet CE and ISO certification standards suitable for pharmaceutical manufacturing.
