High Precision Servo Drive Vial Bottle Powder Filling Machine

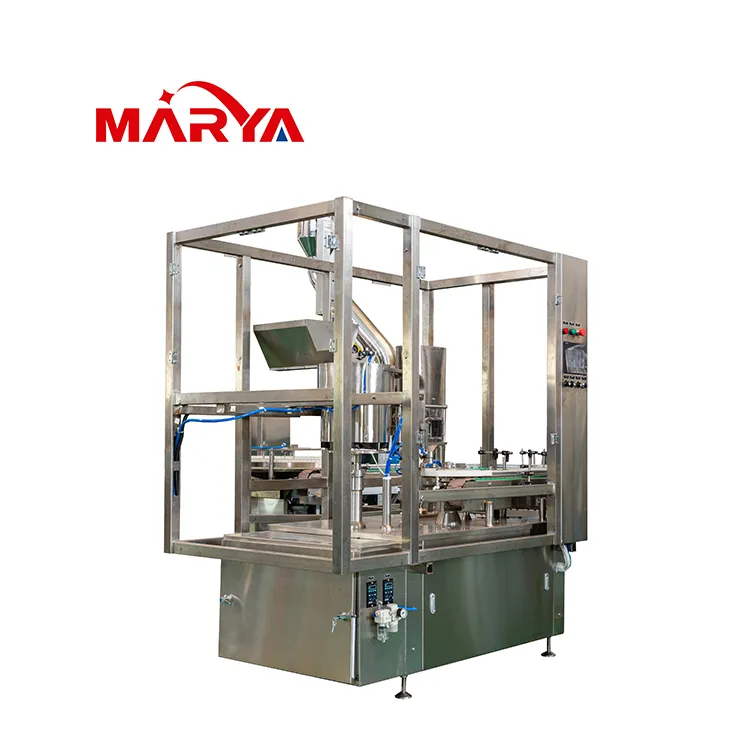

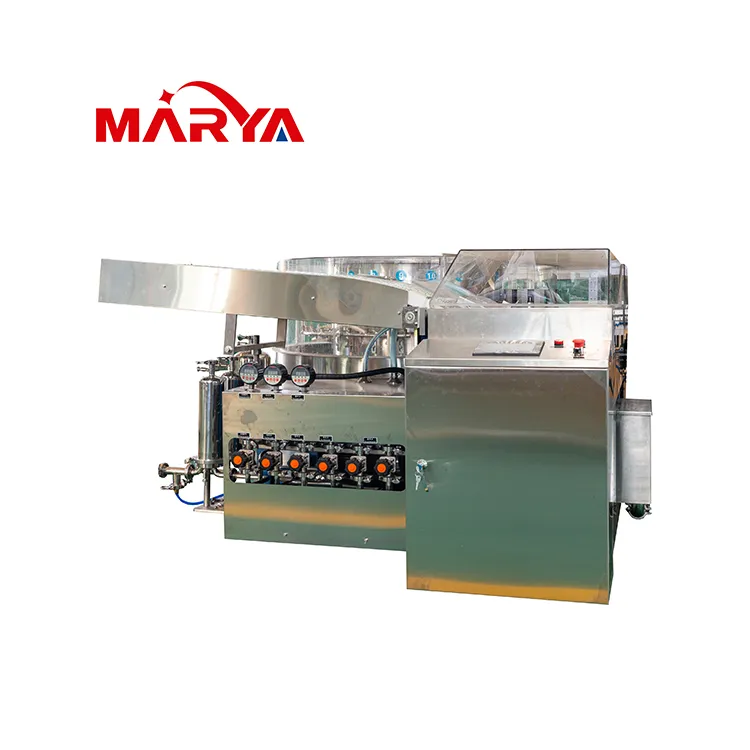

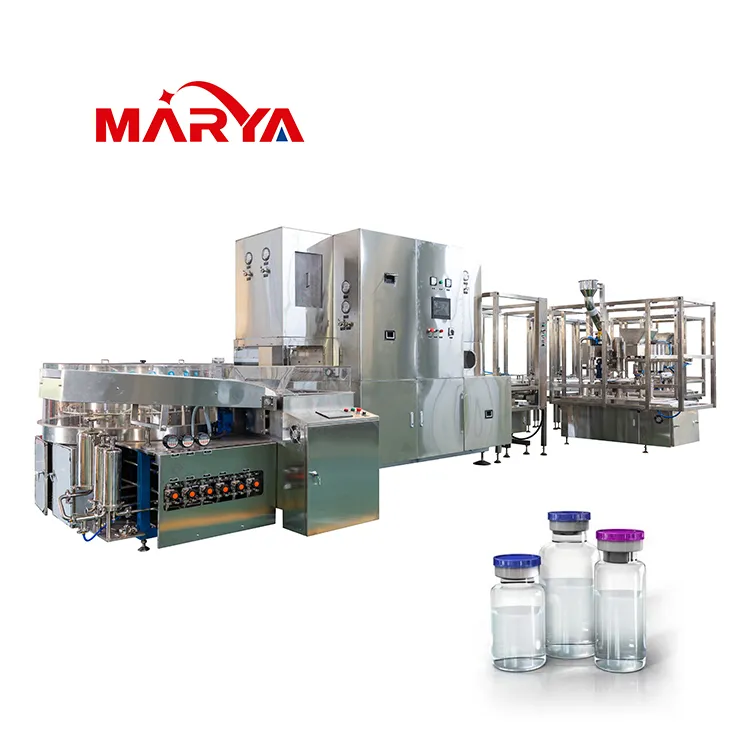

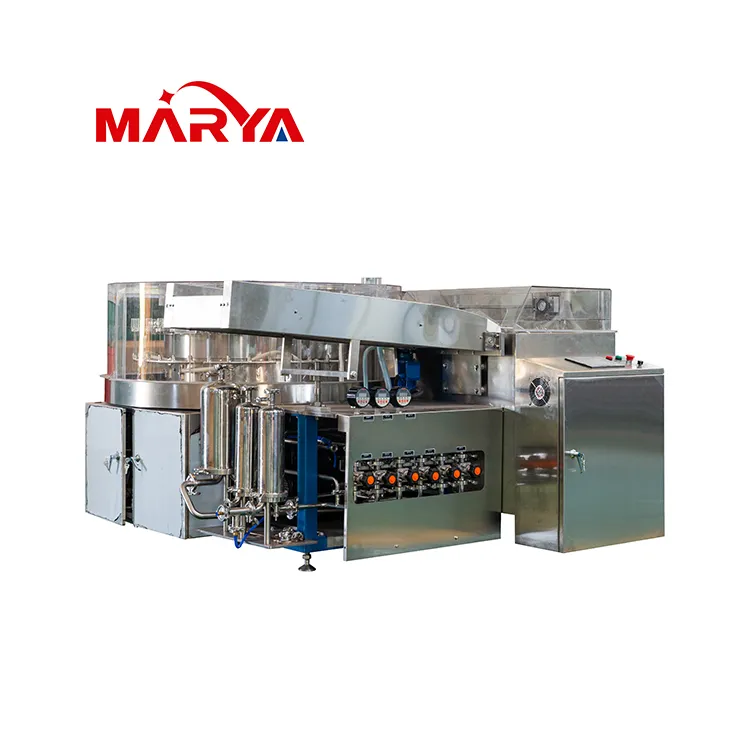

The vial powder filling production line is composed of the ultrasonic bottle washing machine, dryer sterilizer, filling and stoppering machine, and capping machine. It can complete spraying water, ultrasonic cleaning, flushing of the inner and outer wall of the bottle, preheating, drying and sterilization, heat source removing, cooling, bottle unscrambling, filling, plug unscrambling, stopper pressing, cap unscrambling, capping, and other complex functions, realizing automatic production of the whole process. Each machine can be used separately or in a linkage line, which is mainly used in the production of vial sterile powder filling.
| Model | KGF4 | KGF6 | KGF8 | KGF10 | KGF12 | KGF20 |
|---|---|---|---|---|---|---|
| Applicable Specs | 2~30ml vial bottles | |||||
| Filling heads | 4 | 6 | 8 | 10 | 12 | 20 |
| Capacity (bts/min) | 50-100 | 80-150 | 100-200 | 150-300 | 200-400 | 250-500 |
| Qualification Rate | ≥99% | |||||
| Air Cleanliness | 100 Grade | |||||
| Power Supply | 380V 50Hz / 5kw | |||||
