Pilot Scale Biologics Freeze Dryer/Pharmaceutical Freeze Dryer/Freeze Drying Capacity 300kg

Customization:	Available
After-sales Service:	Engineers Available to Service Machinery Overseas, Free Spare Parts, Online Support, video Technical Support
Capacity:	Small Scale (< 100 kg)

Send Inquiry

Product Description

Basic Information Overview

Model NO.:RTFD-GZL20

Certification:CE, GMP, ISO, SGS

Control System:PLC Control

Drying Temp:Low Temperature (25-60℃)

Main Material:Stainless Steel

Condenser Temp:-75ºC

Shelf Temp:-55 to +80

Warranty:1 Year

Voltage:380V

General Introduction

RTFD-GZL series vacuum freeze dryers are commercial type modules used for mass production, featuring shelf areas from 1m² to 50m². Equipped with Bitzer refrigeration units and a condensation temperature of -75ºC, these units offer stable and reliable performance. CIP (Clean-In-Place) and SIP (Sterilize-In-Place) systems are available as integrated options.

Commonly applied in pharmaceutical industries, blood products, biologicals, and chemical fields, these machines improve medicine quality and extend storage periods. The entire freezing and drying process is completed within the shelf area of the drying chamber.

Main Features

Shelf manufactured with patent technology, ensuring high pressure resistance and superior temperature uniformity.

Freeze-drying curve optimization: controls cooling rates during pre-freezing and heating rates during sublimation.

High water capture capacity and drying efficiency.

Unique double sealing technology for chamber doors, suitable for steam sterilization.

Vacuum degree adjustment prevents foaming of special substances.

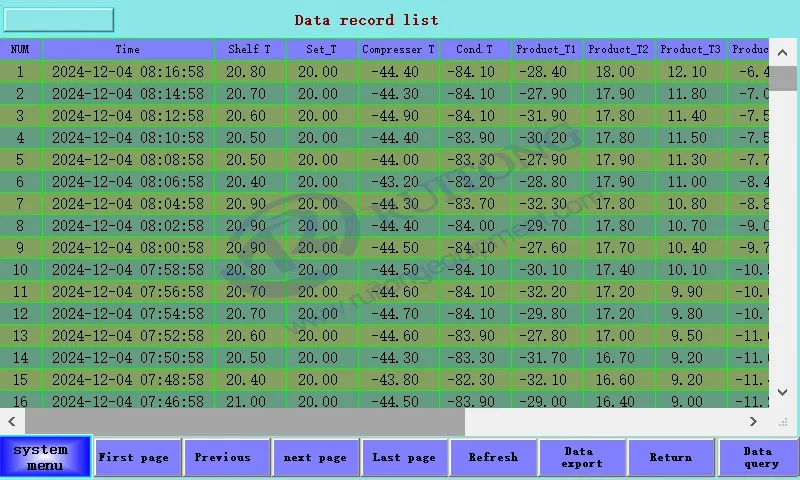

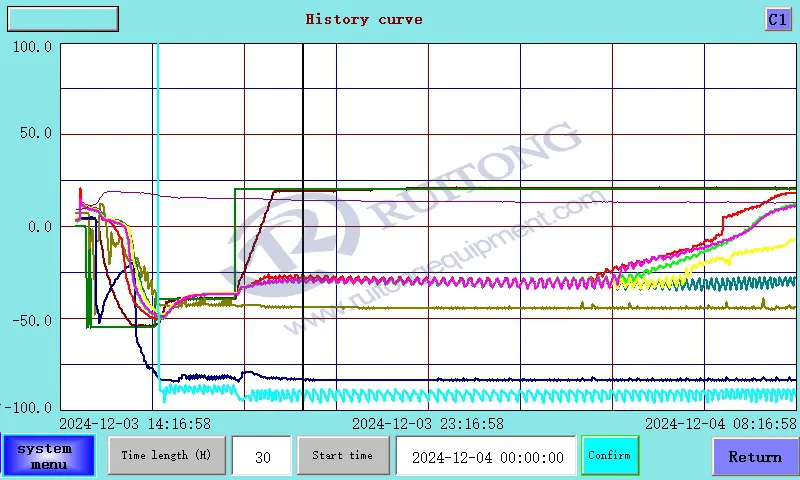

Industrial embedded touch screen with LYO-CONTROL system for real-time process monitoring and data storage up to 10 years.

Manual + Automatic modes for both process exploration and batch production.

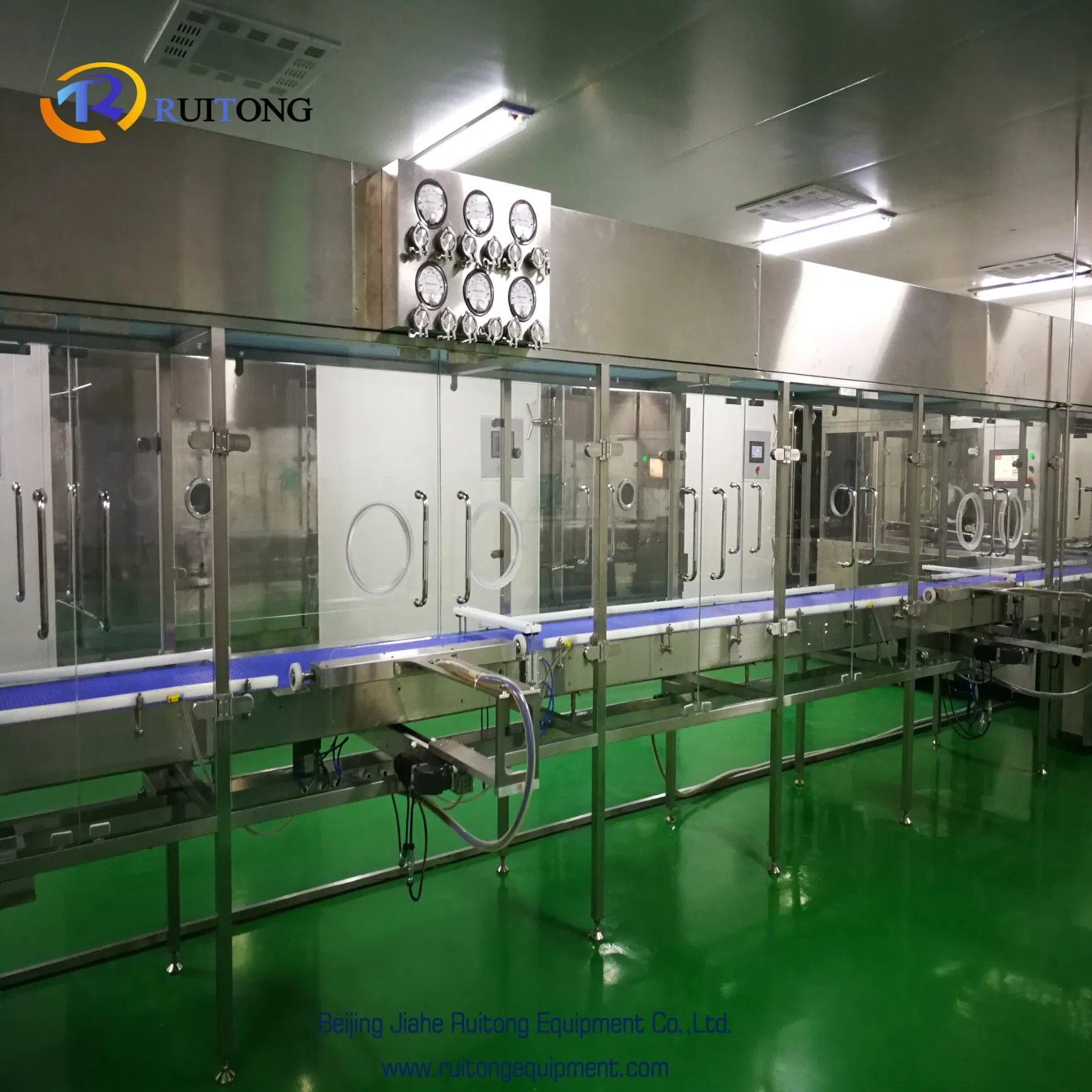

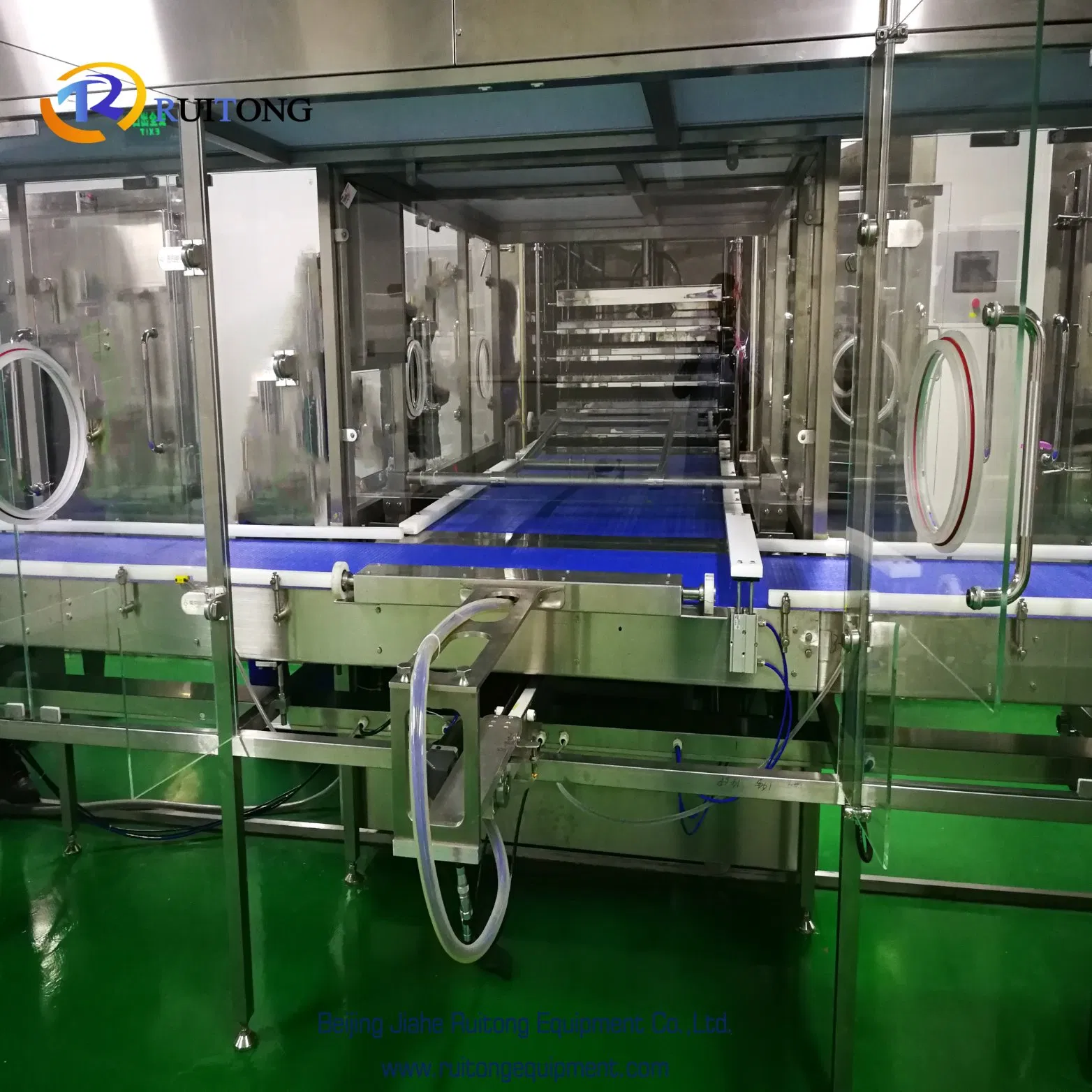

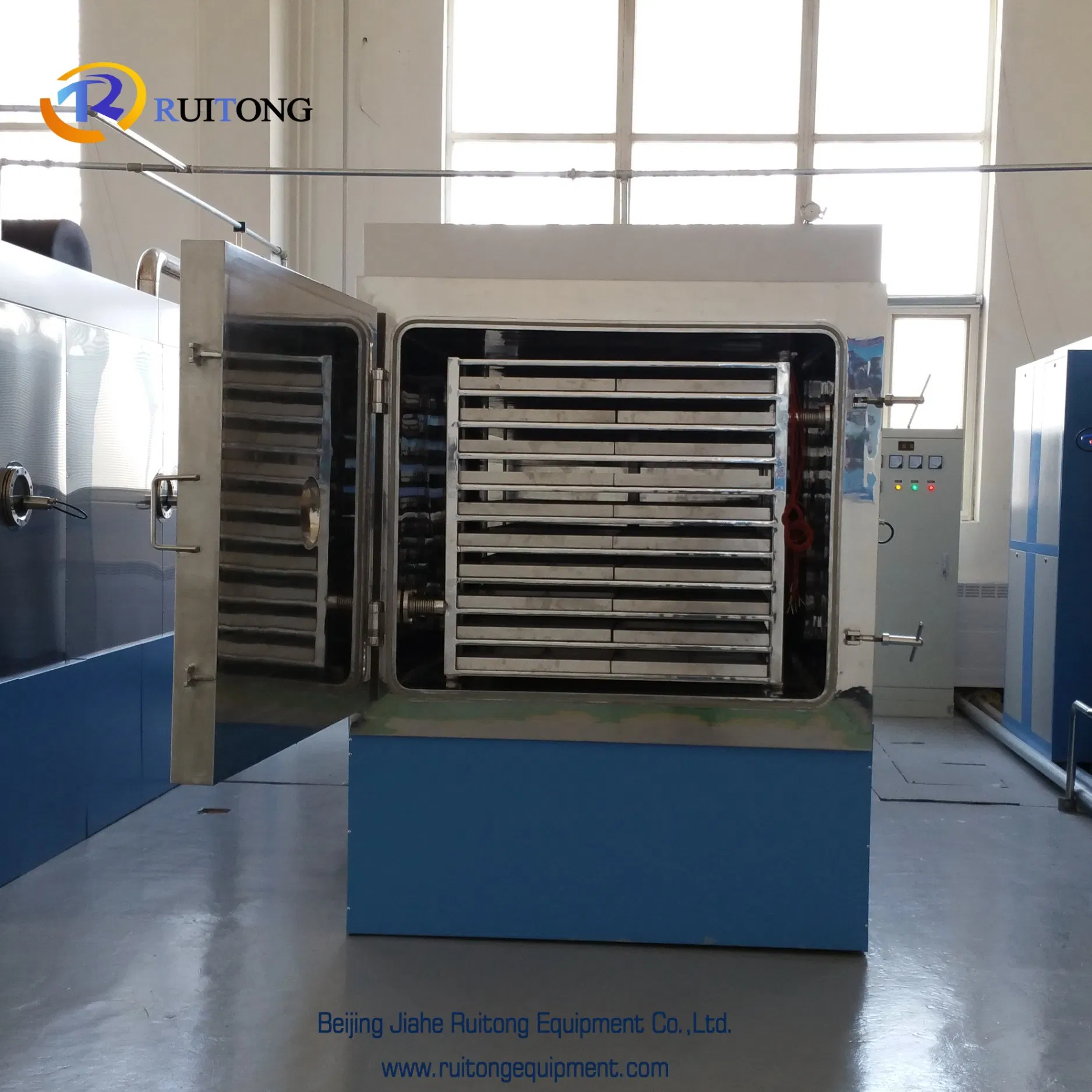

Product Presentation

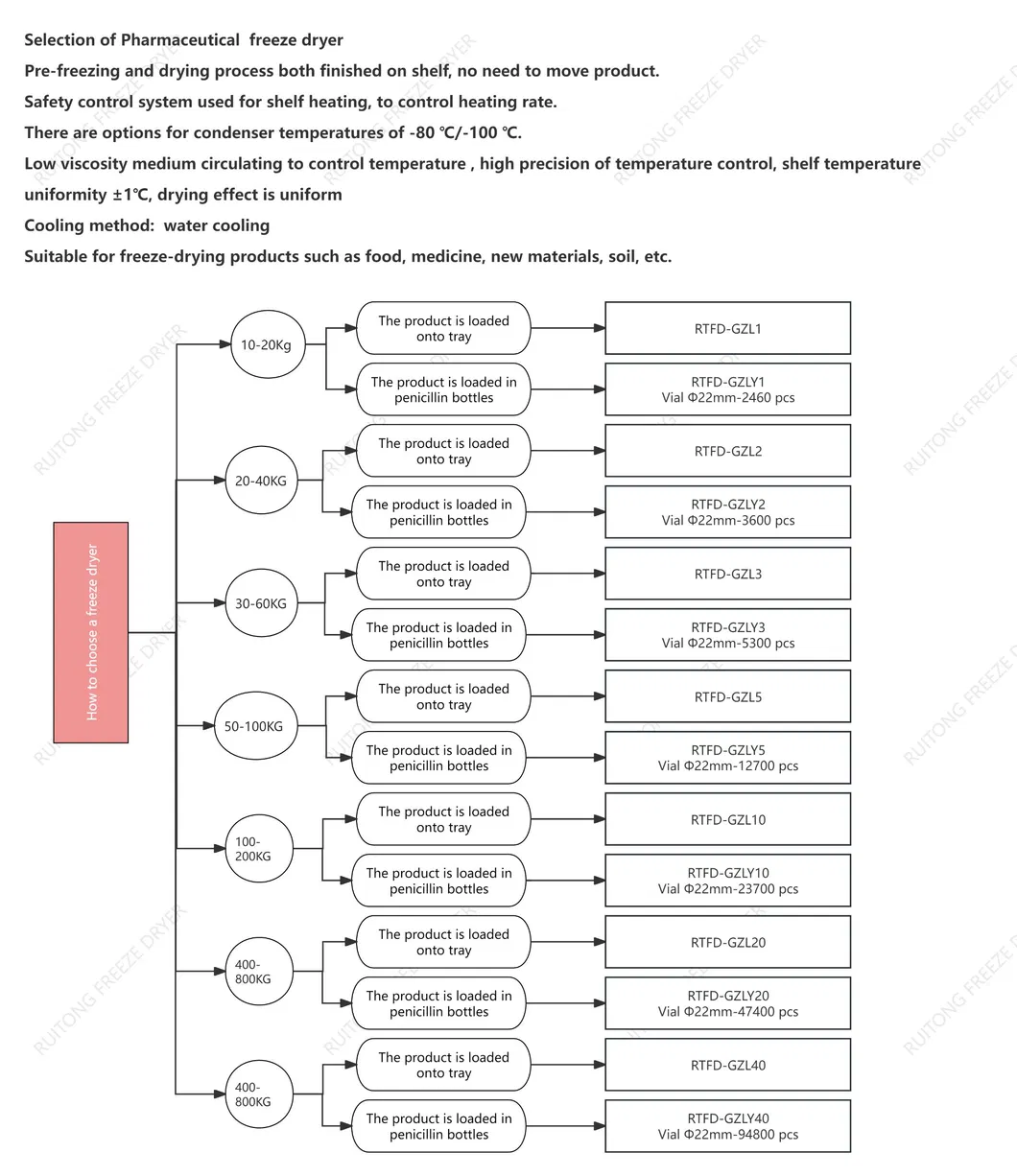

Technical Parameters

Model RTFD-	GZL2	GZL5	GZL10	GZL20	GZL30	GZL40
Nominal Area (m²)	2	5	10	20	30	40
Condenser Cap (kg/batch)	40	100	200	410	590	800
Shelf Min Temp (ºC)	< -50
Final Vacuum (Pa)	< 10

Application & Packaging

Frequently Asked Questions (FAQ)

Q1: What industries use the RTFD-GZL freeze dryer? A: It is widely used in pharmaceutical, biological products (vaccines/blood products), and specialized chemical fields for mass production.

Q2: Can the drying process be customized? A: Yes, it features manual and automatic modes, allowing users to adjust process formulations in real-time for optimization.

Q3: Does the system comply with GMP requirements? A: Yes, the control system includes password management and operation level settings that meet GMP standards.

Q4: Are CIP and SIP systems included? A: These are available as modular options depending on your production requirements.

Q5: What is the shelf temperature range? A: The shelf temperature range is typically from -55ºC to +80ºC with an accuracy of ±1ºC.
