Pilot Scale Biologics Freeze Dryer/Pharmaceutical Freeze Dryer/Freeze Drying Capacity 30kg

1 / 5

Pilot Scale Biologics Freeze Dryer/Pharmaceutical Freeze Dryer/Freeze Drying Capacity 30kg

Customization:	Available
After-sales Service:	Engineers Available to Service Machinery Overseas, Free Spare Parts, Online Support, video Technical Support
Capacity:	Small Scale (< 100 kg)

Send Inquiry

Product Description

Basic Information

Model NO.

RTFD-GZL20

Certification

CE, GMP, ISO, SGS

Control System

PLC Control

Drying Temperature

Low Temperature (25-60℃)

Main Material

Stainless Steel

Condenser Temp

-75

Shelf Temperature

-55 to +80

Finished Dosage

Powder or Others

General Introduction

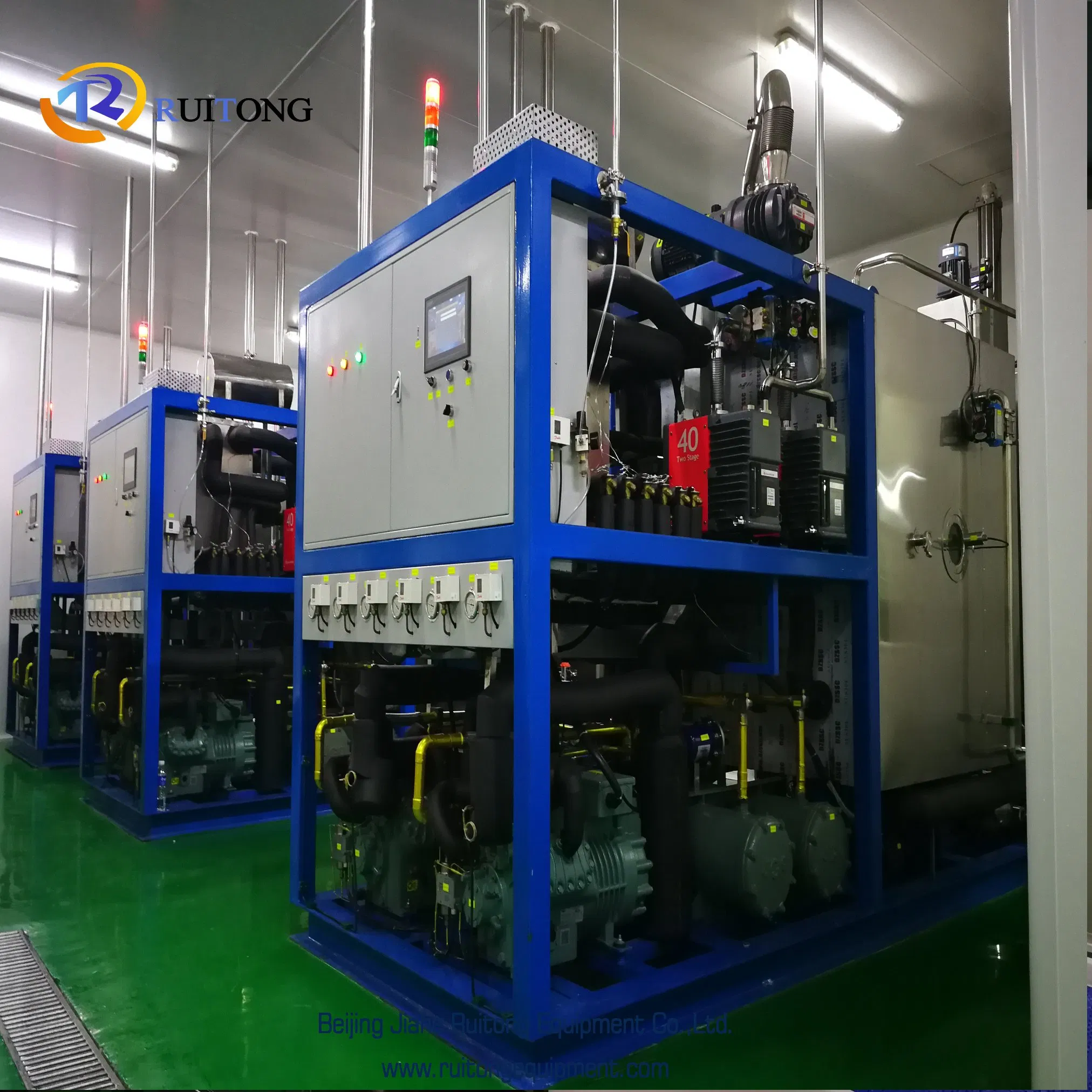

RTFD-GZL series vacuum freeze dryers are commercial type, used for mass production, shelf area from 1m² to 50m². It uses Bitzer refrigeration unit, condensation temperature -75ºC, with stable and reliable performance. CIP and SIP systems can be options.

These units are widely used in blood products, vaccines, biological products, and the chemical/medicine field. Freeze drying process can significantly improve medicine quality and storage duration. Suitable for products in bulk (liquid, solid, paste) with the process completed inside the drying chamber.

Main Features

Shelf made with unique technology, high pressure resistance, and good temperature uniformity.

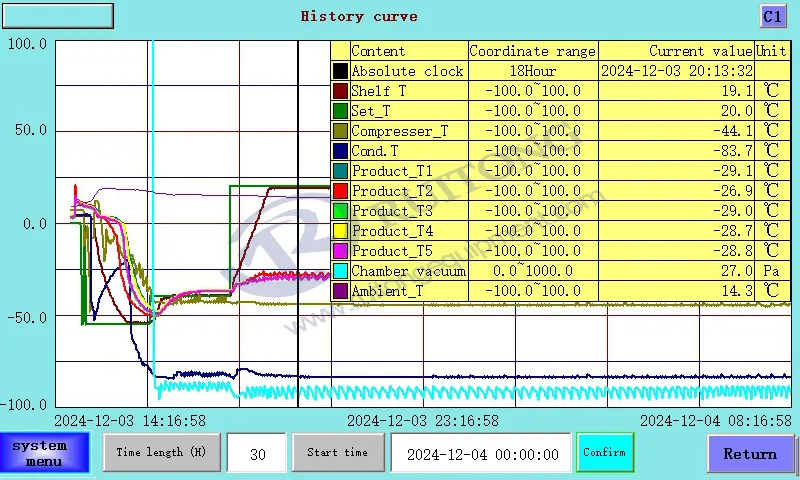

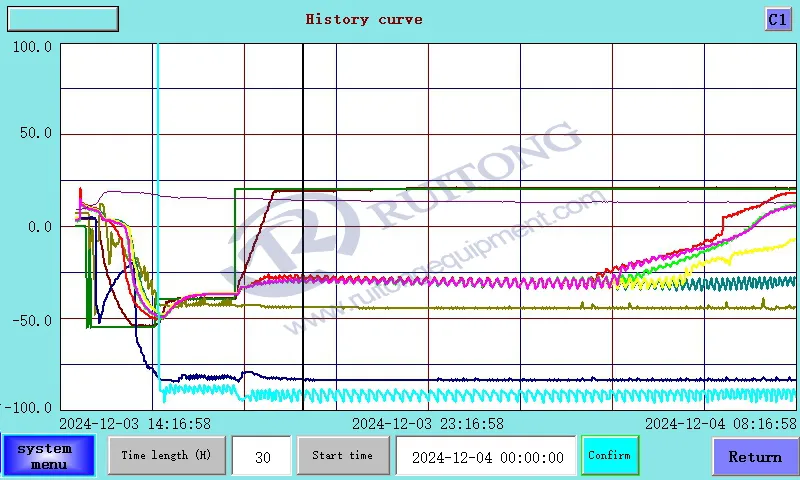

Freeze-drying curve optimization and control technology for pre-freezing and sublimation stages.
High water capture ability and drying efficiency.
Unique double sealing technology for chamber doors (mobile and fixed type).
Adjustable vacuum degree to avoid foaming of special substances.

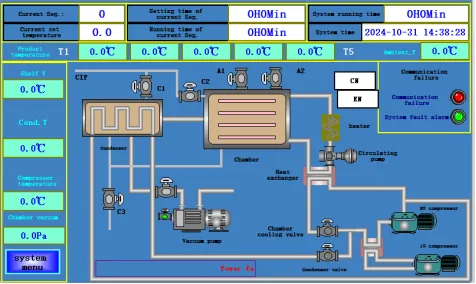

Industrial embedded touch screen and professional LYO-CONTROL system.
Manual and automatic control modes for process exploration and batch production.

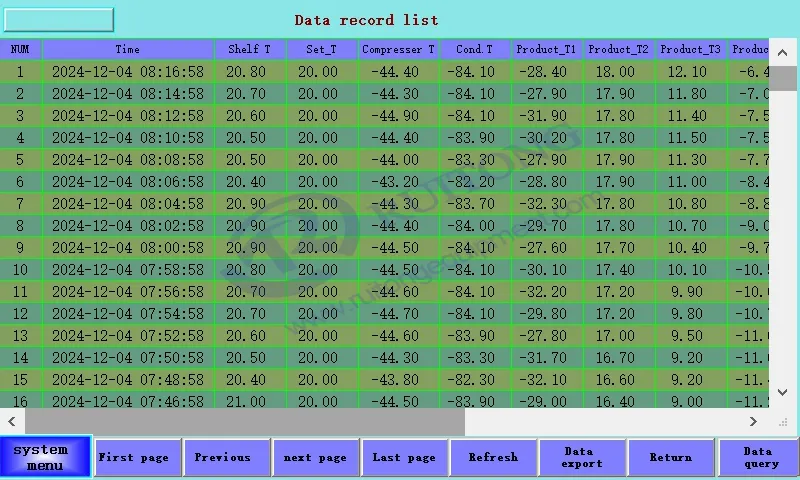

Operation data storage for up to ten years to ensure product traceability (GMP compliant).

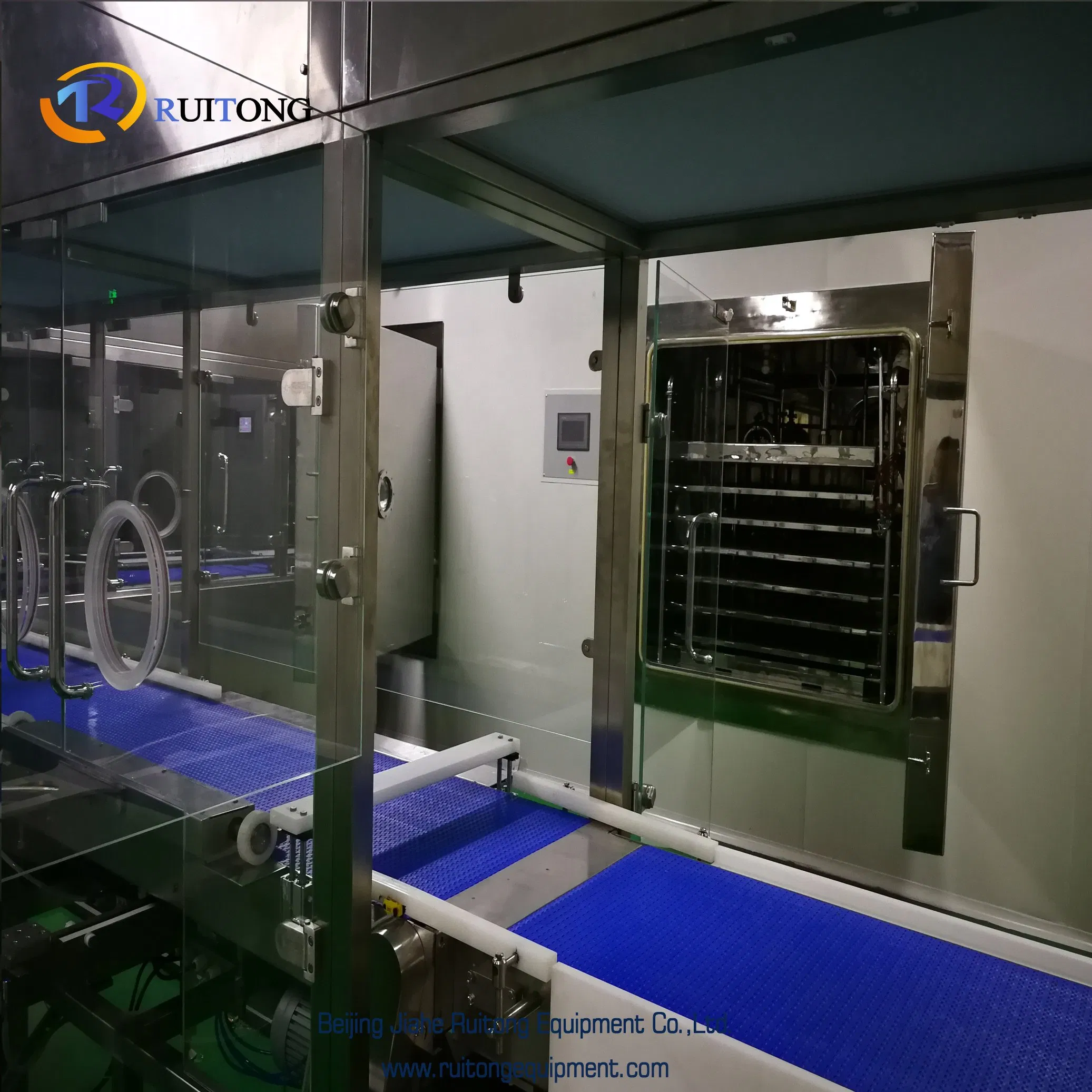

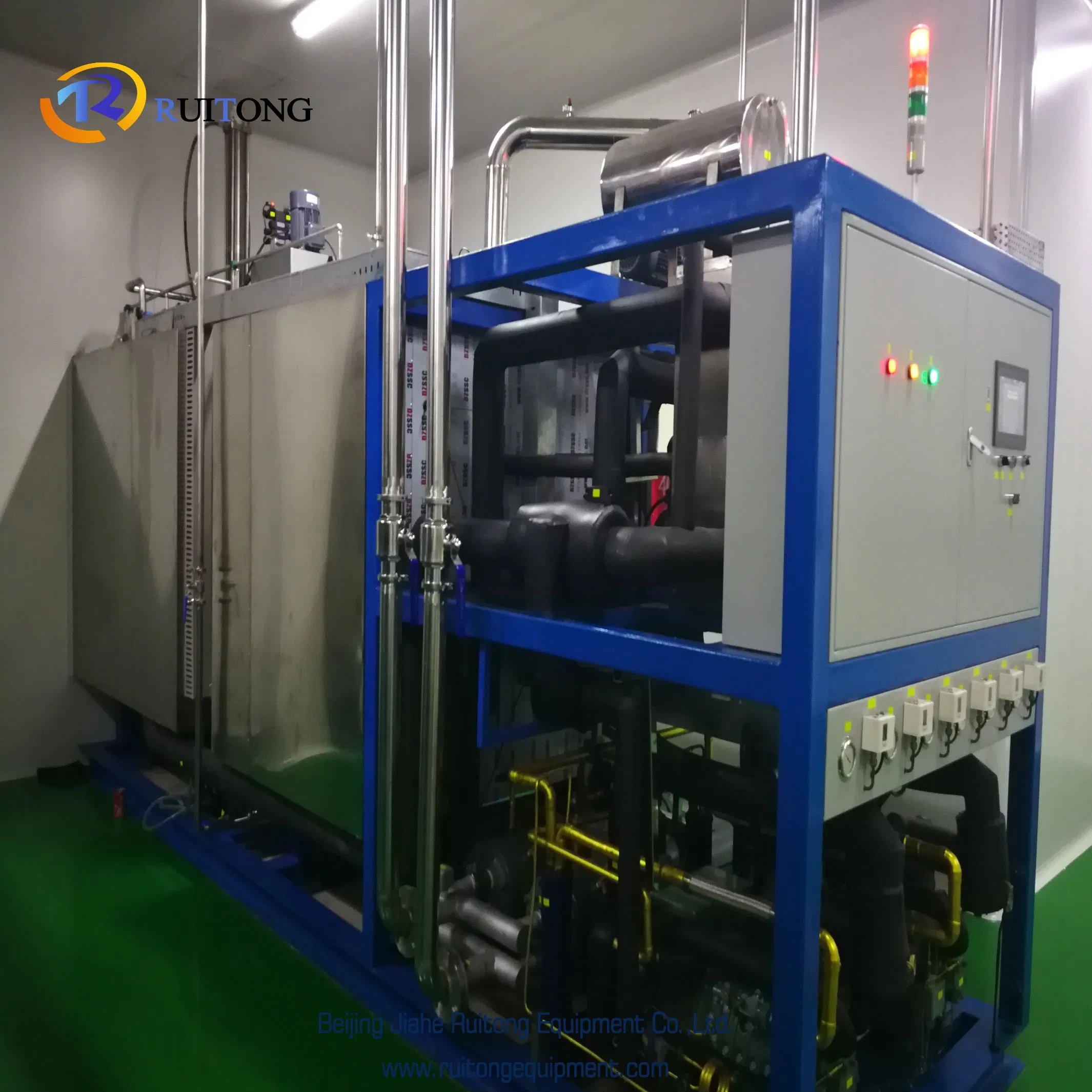

Product Presentation

Technical Parameters

Model	RTFD-GZL2	RTFD-GZL5	RTFD-GZL10	RTFD-GZL20	RTFD-GZL40
Shelf Area (m²)	2.22	5.5	10.33	20.63	40.5
Condenser Cap (kg/batch)	40	100	200	410	800
Shelf Min Temp (ºC)	< -50
Final Vacuum (Pa)	< 10
Total Weight (Kg)	2500	3800	6300	9500	18000

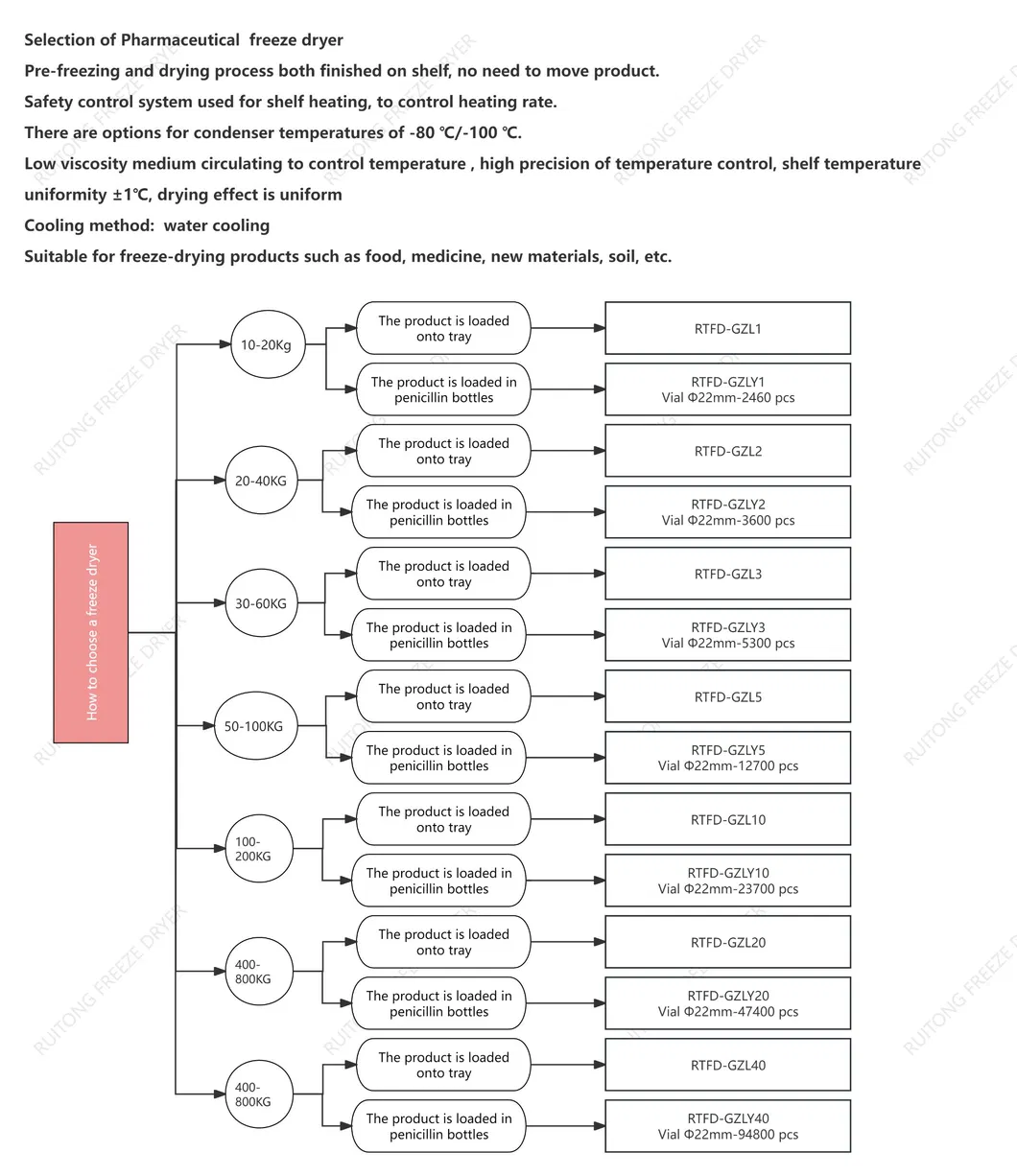

Packaging & Selection

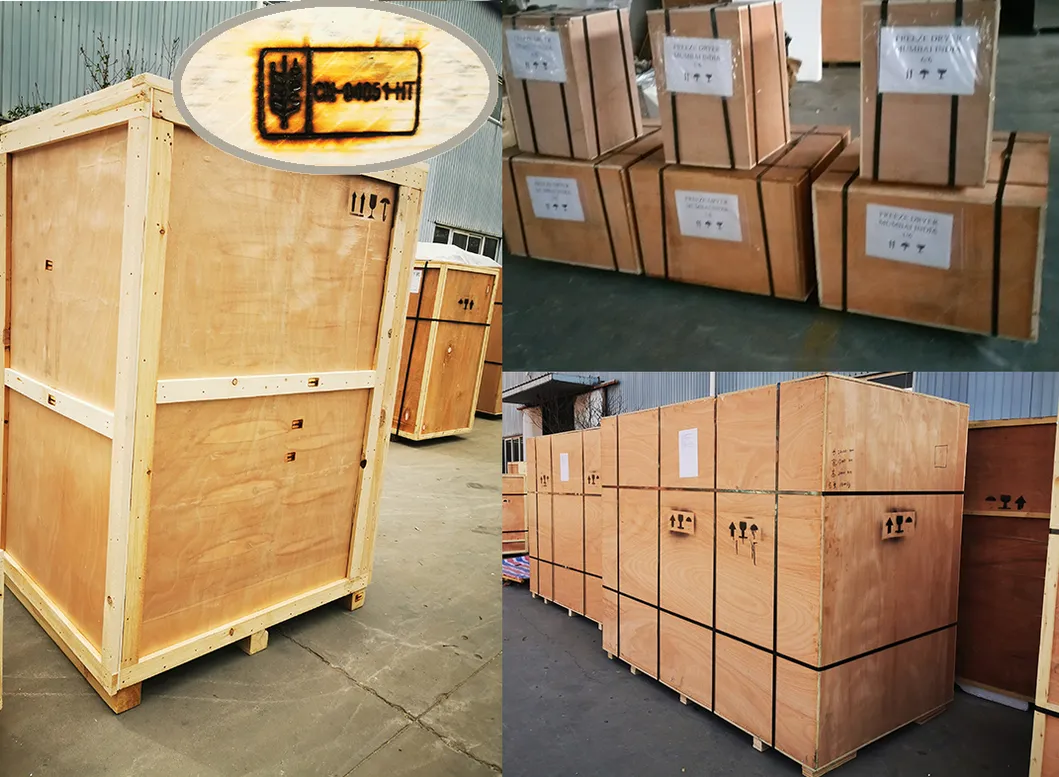

Packing: Export standard plywood case for safe shipping by sea or air.

Frequently Asked Questions (FAQ)

Q1: What are the primary applications for the RTFD-GZL series?

A: It is widely used in the pharmaceutical industry for biological products, vaccines, blood products, and chemical medicines in liquid or solid states.

Q2: Can the freeze dryer be customized?

A: Yes, non-standard customization is available based on specific user requirements for shelf area, capacity, and optional systems like CIP/SIP.

Q3: What refrigeration system is used?

A: These dryers utilize Bitzer refrigeration units, achieving condensation temperatures as low as -75ºC for stable performance.

Q4: How long is the operation data stored for GMP compliance?

A: The control system can record and store operation data, curves, and alarm records for up to ten years to ensure traceability.

Q5: Are CIP and SIP systems included?

A: Clean-In-Place (CIP) and Sterilize-In-Place (SIP) systems are available as optional configurations depending on your production needs.

Q6: What is the standard packaging for international shipping?

A: The units are packed in robust plywood boxes with steel frames to prevent damage during sea or air transport.
